Full Size Servo Mount (for factory chassis)

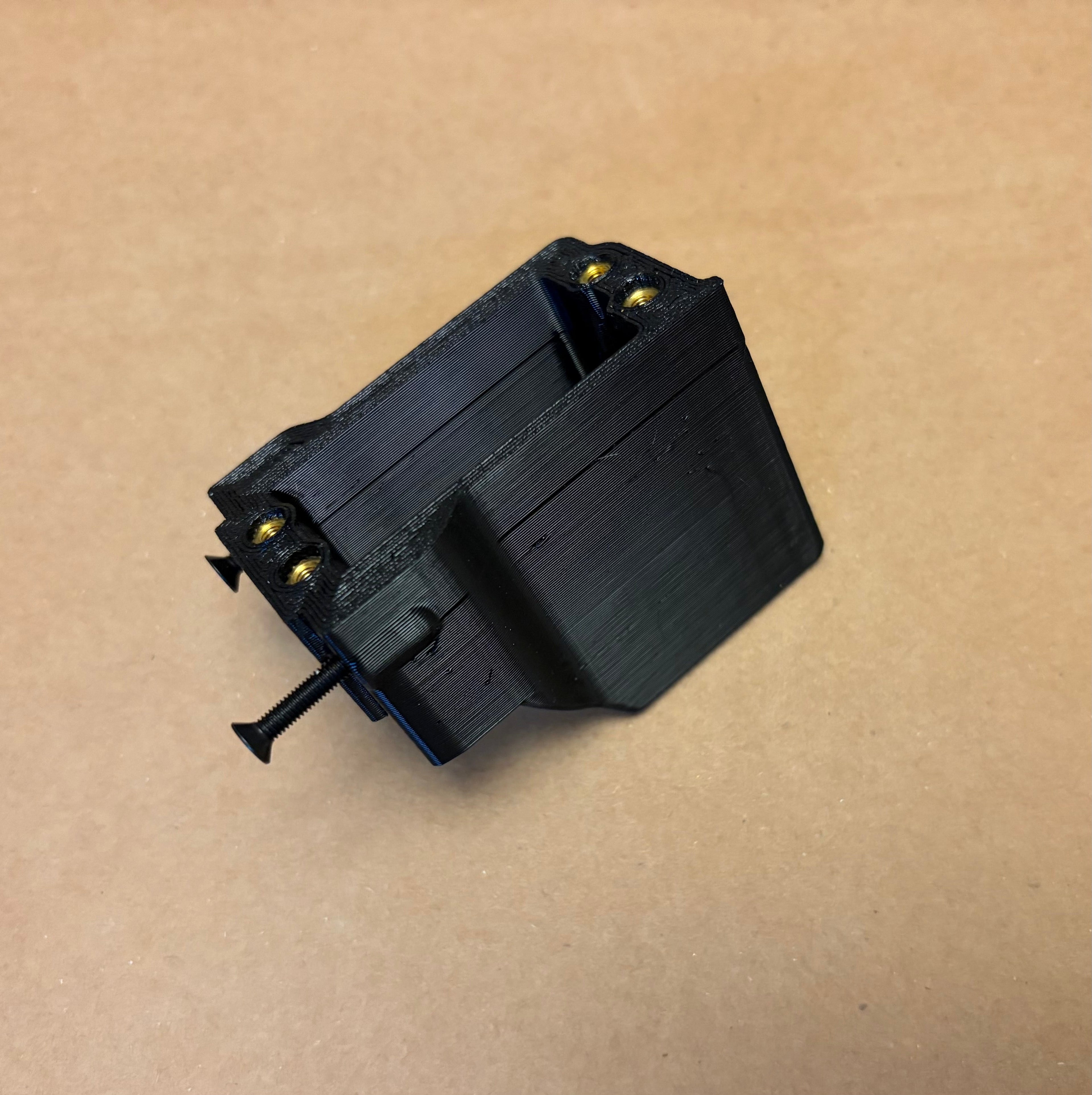

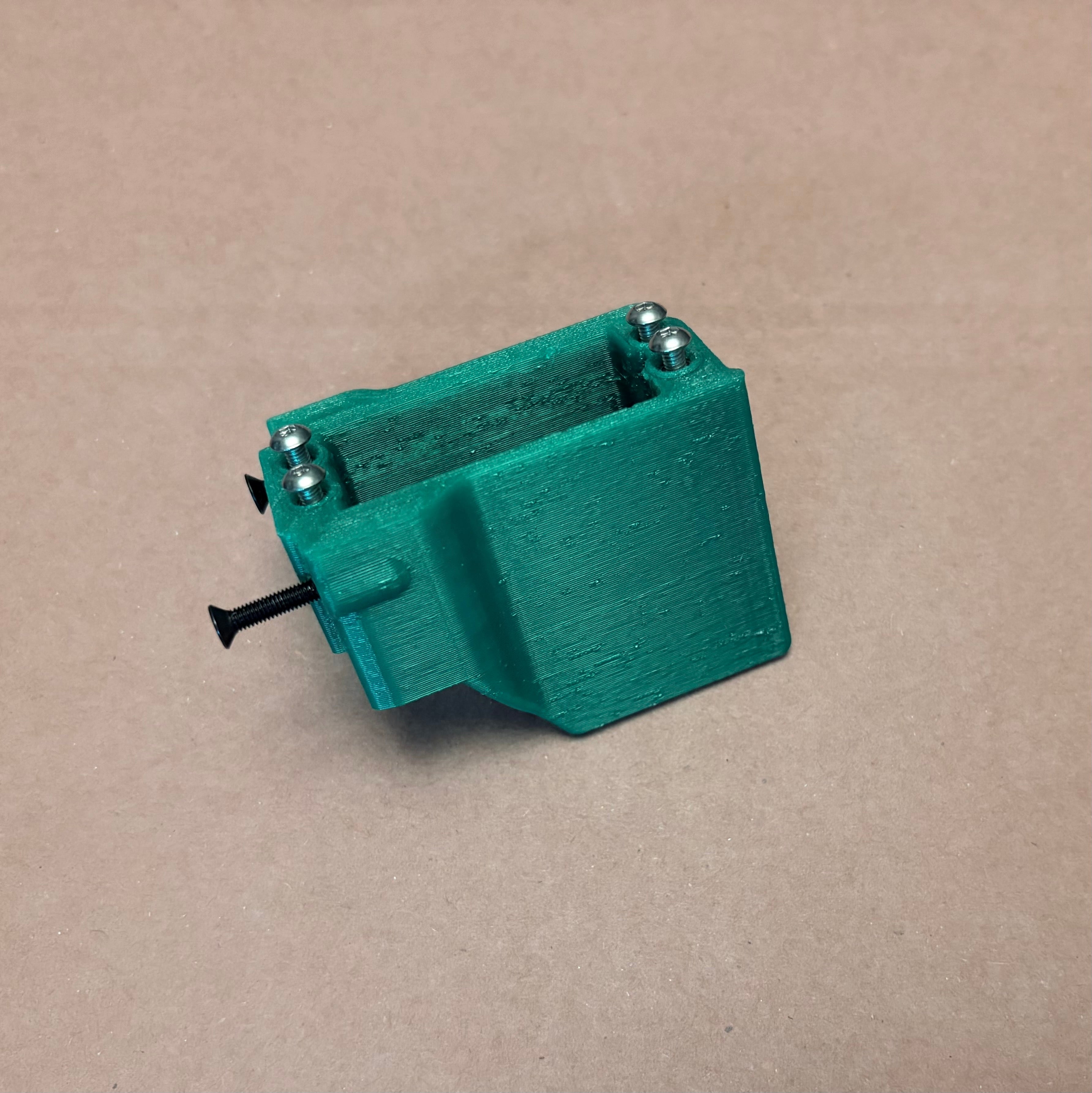

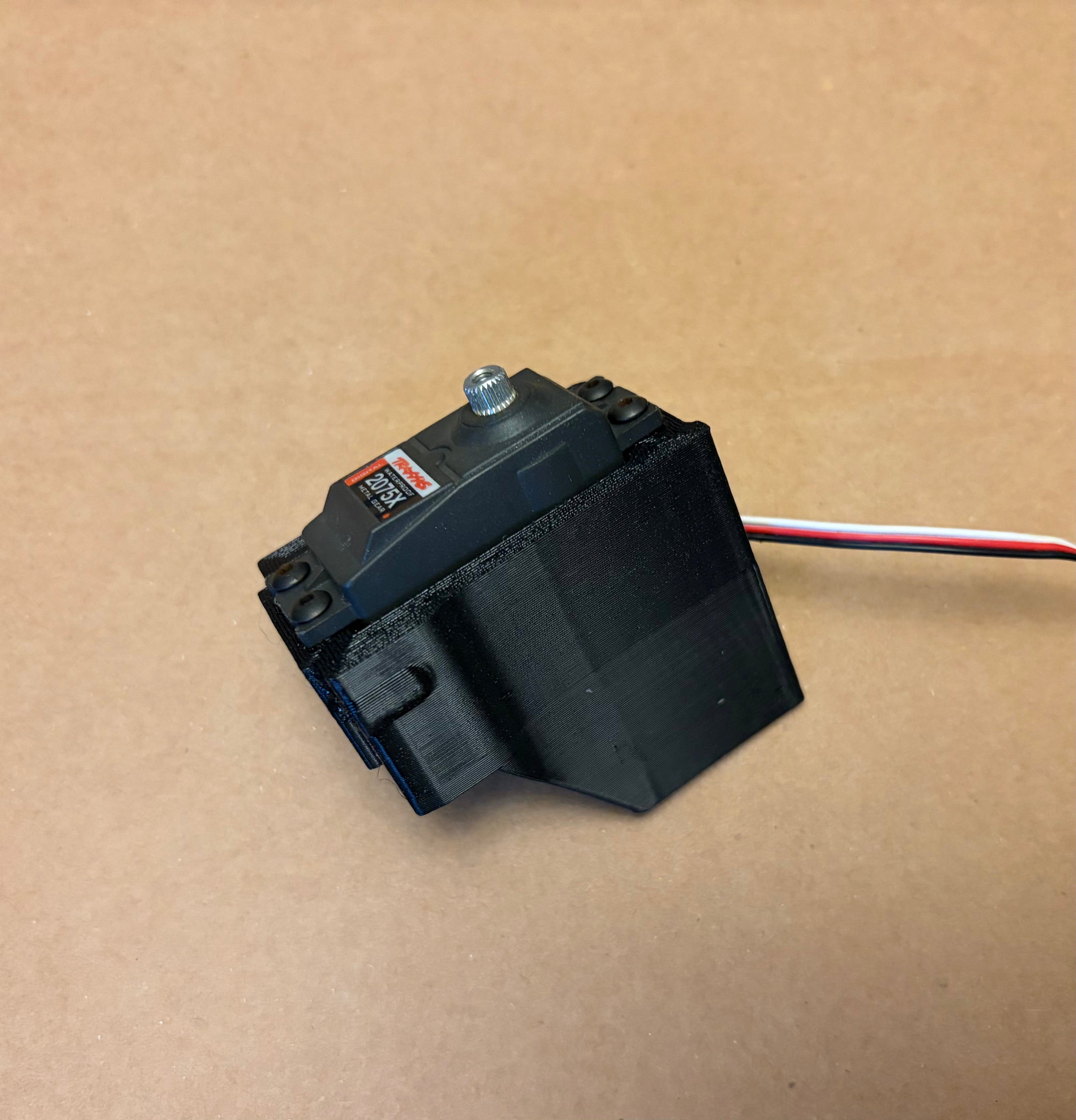

Mount a full-size servo in your factory Mini Kraton chassis.
Most 1/10-scale RC cars and crawlers use a standard servo mounting pattern with holes spaced 48.5–50.5 mm top-to-bottom and 10 mm center-to-center. This mount uses a 49 × 10 mm bolt pattern so it fits both common servo sizes.
Choose the Digital File to print it at home, or the 3D Printed Servo Mount if you want the part already printed. The digital version is designed for 3 mm threaded inserts; 3 mm hardware and threaded inserts are required to complete the part.
After purchasing the digital file, your order confirmation is followed by an email containing the download link.
Fitment notes: tested on three full-size servos and designed to fit almost all servos. You will need to drill the bottom two factory-chassis holes so 3 mm screws can fit. Servo horn hookup is up to your specific setup.
